7 Inch Touch Screen Display Monitor Factory OEM Bus / Pos Terminal For GPS PC RC FPV
Model No: VT701
Size: 7"
Resolution: 1024X600
Interface: VGA/HDMI/USB
Screen ratio: 16:9
Inquiry- Description
SPECIFICATION
| Panel size | 7 inch TFT-LCD Capacitive/Resistive Touch Screen Monitor | ||||||
| Standard Resolution | 1024*600/60HZ | ||||||
| Number of Colors | 16.2M | ||||||
| Brightness | 300cd/m2 | ||||||
| Response time | 5ms | ||||||
| View angle | Horizontal:170° | ||||||
| Vertical:170° | |||||||
| Contrase ratio | 300:01:00 | ||||||
| Video input format | (analog) RGB | ||||||
| Connector | VGA+HDMI+USB | ||||||
| Frequency | 30~80KHz/60~75Hz | ||||||
| Power supply | External Power Supply:100 to 240V (DC 12V) | ||||||
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C | ||||||
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |||||||
| Touch model | Capacitive Multi/Single Resistive Touch | ||||||
| Optional | (5-wire resistive touch,SAW,Infrared touch optional) | ||||||
| Duration | 50000hours | ||||||
| touch validity | >1,000,000 | ||||||
| Net weight | 3.0 Kgs/pcs,include stable mental base | ||||||
| Gross weight | 4.5 Kgs/pcs,include stable mental base | ||||||
| Power consumption | Max 30W | ||||||

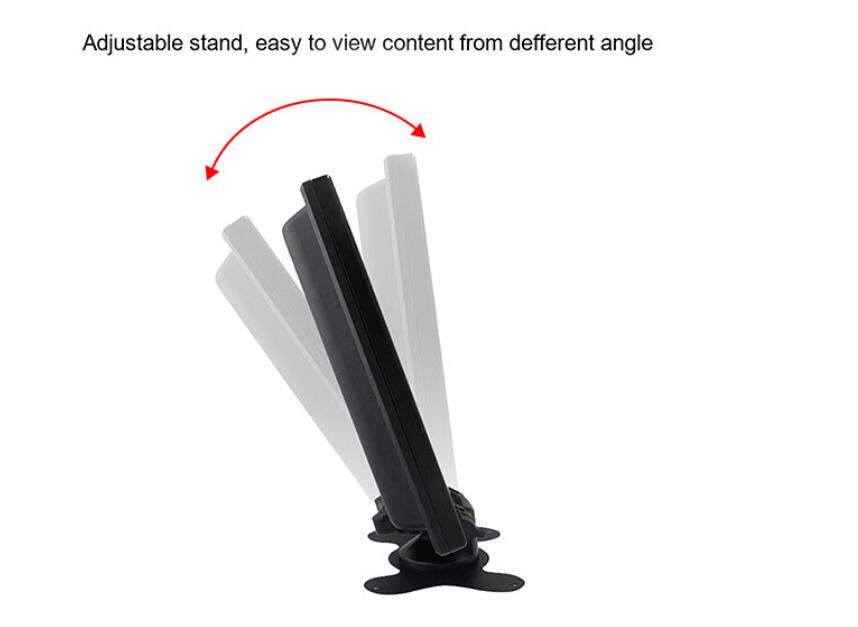

| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm | ||||||
| 2) provide stable mental base to support the monitor | |||||||
| OSD control | AUTO,+,POWER,-,MENU | ||||||
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |||||||
| Touch interface | USB | ||||||
| Touch response time | 2ms | ||||||
Touch Screen Monitor
