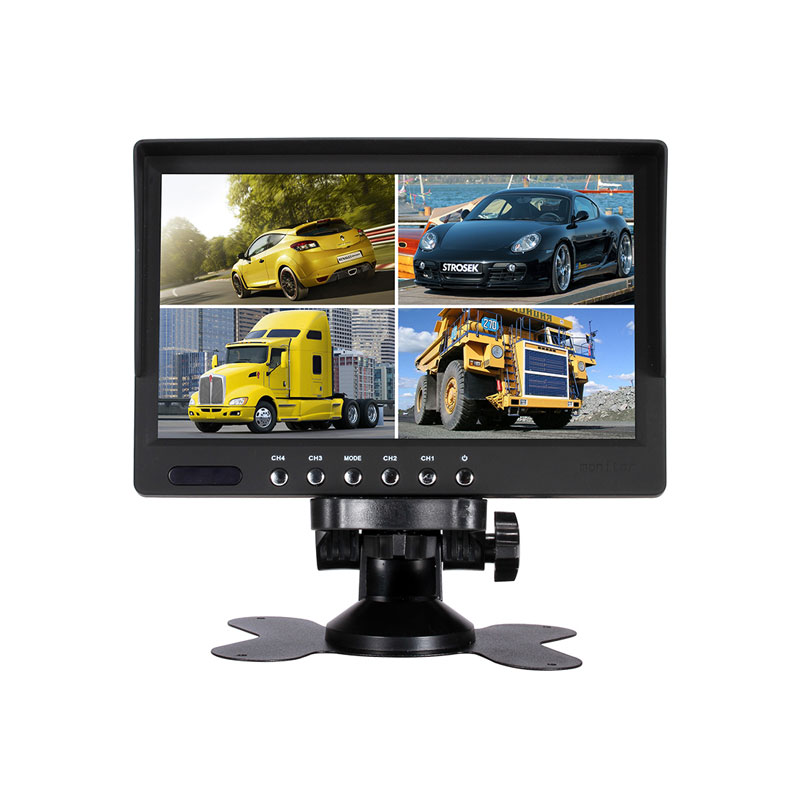

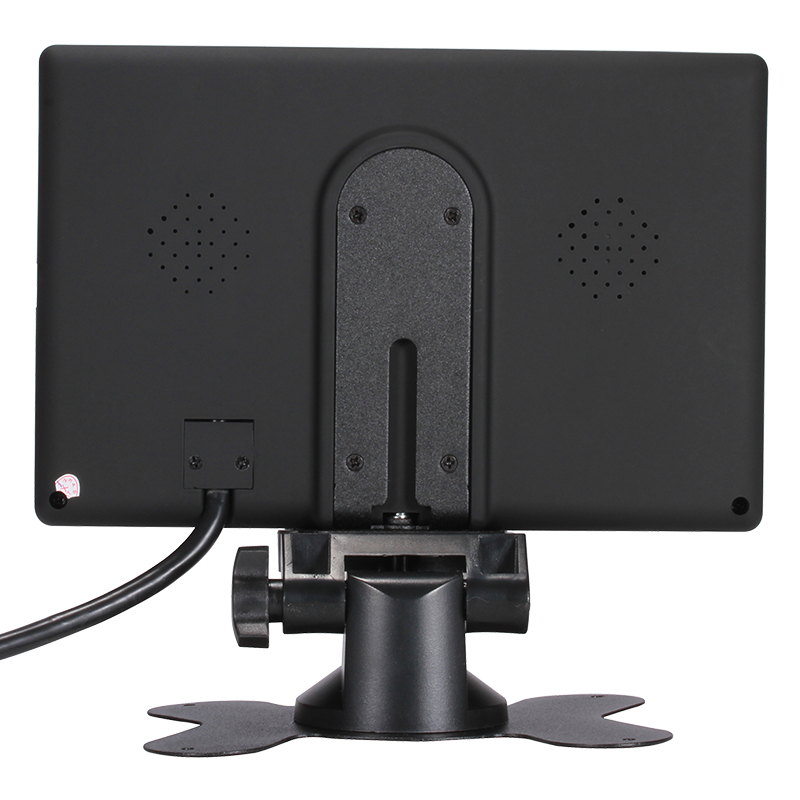

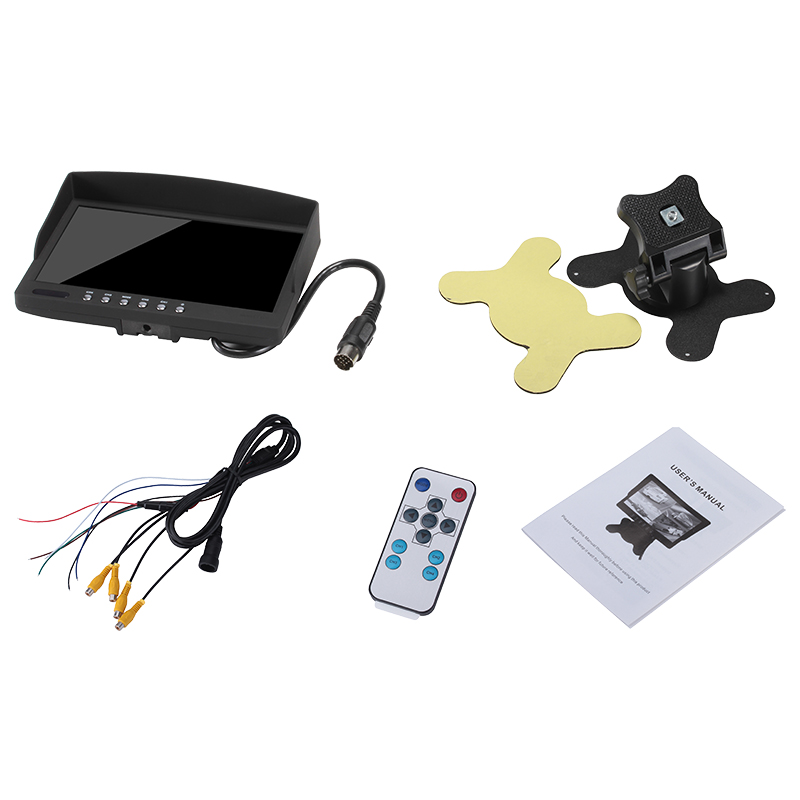

7” Mini TV & Computer Display HDMI VGA AV LCD Monitor for CCTV
Model No: VC701
Size: 7"
Resolution: 1024X600 IPS Screen
Interface: VGA/HDMI/BNC/AV
Screen ratio: 16:9

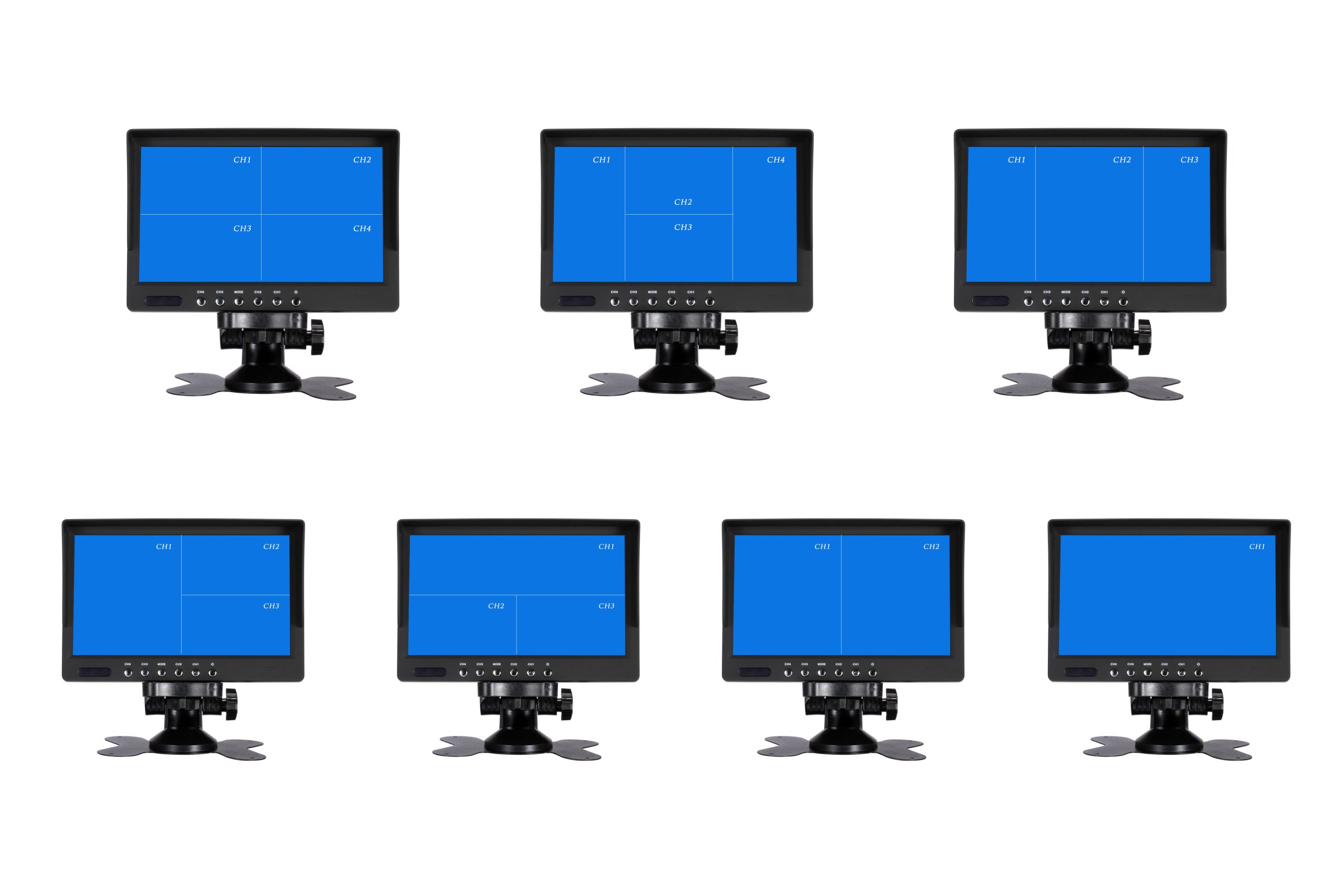

Channel support: 1/2/3/4 channels or more customized
Inquiry- Description
SPECIFICATION
- Video signal input range: 0.7 to 1.4Vp-p / 75 Ohm
- Input frequency supported: H: 30 to 60 kHz, V: 60 to 75 Hz
- Speaker output power: up to 1 W / 8 ohms
- Video color system: PAL-4.43; NTSC-3.58
- support format: 480i (60Hz), 480p (60Hz), 576i (50Hz), 576p (50Hz), 720p (50 / 60Hz)
- NTSC / PAL video color system, brightness, contrast, color, and hue adjustments
- Supply voltage: DC7.9V to 13.5V
- Power consumption: up to 8W
- Standby current: up to 35 mA
- Operating temperature: -20 to 50 degrees Celsius
- Storage temperature: -30 to 65 degrees Celsius
- Ports: VGA, BNC, USB, AV input, DC 12V
- Languages: French, English, Italian, Spanish, German, Chinese, Turkish, Russian
| Panel | Size | 7 inch |
| Viewing Area | 154.214×85.92mm | |
| Screen Ratio | 16:9 | |
| Potch | 0.297(H)×0.297(V) | |
| Resolution | 1024*600 | |
| Contrast | 500:1 | |
| Brightness (cd/m2) | 300cd/m2 | |
| Response time(ms) | 5ms | |
| Viewing Angle | 168°/168° | |
| Color | 16.7M | |
| Working life | 50,000 hours |
